CS25: Computer Architecture, Lab 5

Making an EPIC processor and compiler.

by Jeff Kaufman

For this lab I designed an explicitly paralell instruction set, wrote a CPU design in VHDL to implement it, and then wrote a simple compiler to convert serial code to run efficiently on this processor.

An explicitly parallel instruction set makes sense because while all modern CPUs excecute multiple instructions at once, standard superscalar ones have to still present a serial interface to the outside world. This requires the processor to waste a lot of circutry on dependency checking and re-ordering instructions. With and explicitly parallel system we present a parallel interface and shift the burden of converting the serial code to parallel code over to the compiler or the programmer. This makes a lot of sense for several reasons:

• It only has to be done once per program, instead of anytime anything is run.
• The compiler can take its time looking through the the code.
• The compiler can optimize based on the code as a whole and not just the little slice that the CPU sees at one time.

The Instruction Set

opp data pred opp reg reg pred "LDD" val pred "JMP" line pred "ISZ" reg X pred pred 0 1 2 3 4 5 6 7 8 9 A B C D E

opp : Oppcode reg : GP Register val : Value line : Line number X : Unused bit pred : Predicate register "..." : A specific oppcode

The first register is always a source, the second always a destination. The second may also be a source, for instructions such as and which take two operands. Because instructions are of fixed size with their components all of fixed size, decoding can be very fast.

The full instruction set is:

0000	nop	No operation performed
0001	mov	reg 2 gets reg 1 if pred
0010	add	reg 2 gets reg 1 + reg 2 if pred
0011	and	reg 2 gets reg 1 & reg 2 if pred
0100	ldd	register A gets val if pred
0101	jmp	jump to line if pred
1000	inv	reg 2 gets the bitwise inverse of reg 1 if pred
1001	sio	Output reg 1 to the display if pred
1010	lio	Input reg 2 from the DIP switches if pred
1011	rsh	reg 2 gets a rightshited reg 1 if pred
1100	lsh	reg 2 gets a leftshifted reg 1 if pred
1101	rsa	reg 2 gets an arithmatically rightshifted reg 1 if pred
1111	isz	pred gets (reg 1 == 0) if pred

Dependencies between the instructions are not dealt with by the CPU and must be dealt with by the programmer or the assembler. The minimum amount of spacing needed between instructions is as follows:

Instruction Type	RAW	WAR	WAW
Register	3	-2	1
IO	1	1	1
Predicate	2	-1	1
Jump	4	-3	1

Note 1: Negative spacing means that the second instruction can be re-ordered to proceed the first
Note 2: For jumps, dependencies must be checked on both sides of the branch.

The processor takes the instructions three at a time, so each line of instruction memory should contain 3 fifteen-bit instructions.

The Processor

Fetch

The next instruction is brought down from memory into the instruction register (IR).

Evaluate Operands

For each instruction of the three in the IR, the operands are fetched. The processor will always look up the two possible register operands, even when only one or even none are needed.

Excecute

The processor now looks at the opcode for the first time and using the opcode and the decoded register values from the previous step figures out what register the instruction is supposed to set and what to set it to. The predicate also gets evaluated here.

Commit

For instructions with predicates that evaluated to 1, the processor sets the given register to the given value. For ones with a 0 predicate it does nothing.

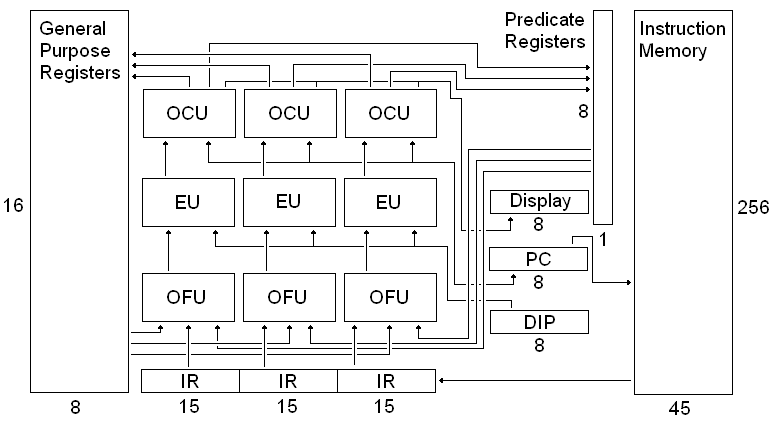

OCU	:		Operation Commit Unit
EU	:		Excecution Unit
OFU	:		Operand Fetch Unit
IR	:		Instruction Register
PC	:		Program Counter
DISPLAY	:		A 2-digit signed hexadecimal LED
DIP	:		An 8-bit input

The IO

The Compiler

I had initially planned to try and take the Ulimate RISC instruction set and make it an EPIC one, but Ultimate RISC doesn't really make for Ultimate EPIC. I figured that I would need to warp it so much to get it remotely efficient that I had better just start over with an EPIC set.
